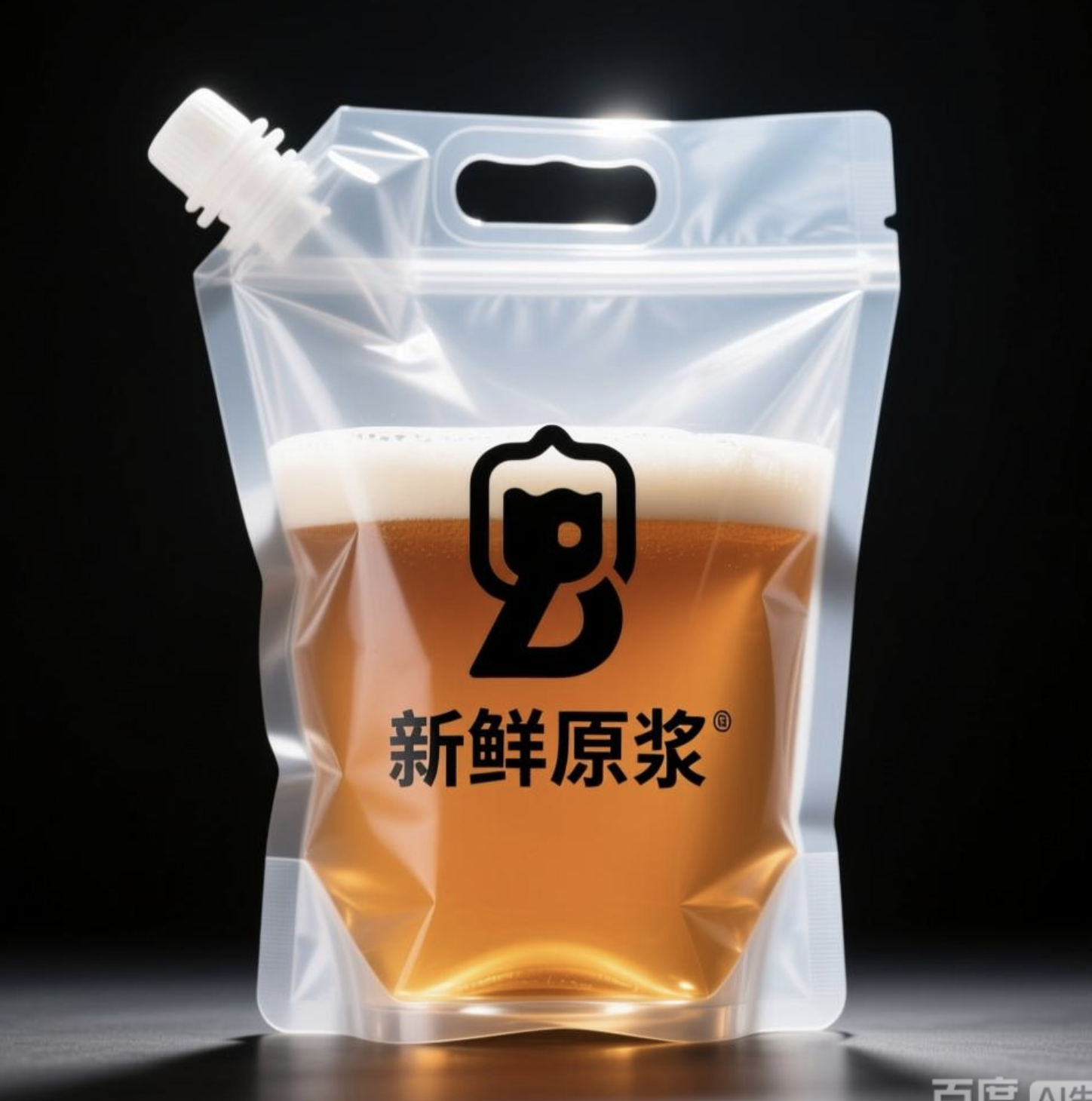

Oxygen Barrier & Leak Proof Fresh Beer Pouch with Customizable Printing
The Craft Capsule: Fresh Beer Stand-Up Pouch represents a revolution in brew-to-glass freshness. This high-performance, portable vessel challenges traditional bottles and cans, serving as a mobile draft system engineered to preserve the brewer's delicate art of aroma, carbonation, and flavor from filling to final pour.
Core Technology: Advanced Barrier Structures
Structure A: The Oxygen Assassin | PET / AL / PE
12μm PET | 9μm AL Foil | 75μm Specialty PE
- Absolute Oxygen Barrier: OTR <0.001 cc/m²/day—crucial for preventing staling and oxidation
- Total Light Block: 100% UV protection prevents "skunky" flavors from light-struck hops
- CO₂ Retention: Exceptional barrier maintains carbonation levels (2.4-2.7 vols) for 120+ days
- Acidic Environment Optimized: PE layer formulated for beer's pH (4.0-4.5) without flavor scalping
Ideal For: Lagers, pilsners, and beers where crisp, clean flavor preservation is paramount.
Structure B: The Burst-Resistant Guardian | PET / AL / PA / PE
12μm PET | 9μm AL | 15μm Nylon (PA6) | 60μm Reinforced PE
- Pressure Resistance: Withstands up to 4 bar internal pressure (vs 3 bar for standard)
- Flex-Fatigue Defense: Prevents micro-cracks during transport and handling
- Enhanced Aroma Lock: Superior barrier to volatile hop aromatics (myrcene, humulene)
- Chill-to-Impact Strength: Maintains integrity from freezing temperatures to 40°C ambient
Ideal For: Highly carbonated beers (saisons, hefeweizens), hop-forward IPAs, and barrel-aged strong ales.
User Experience Journey
From Fridge to Glass: Experience the complete beer preservation system designed for modern consumers.
- Visual Shelf Appeal: Metallic finish with craft-inspired graphics stands upright for premium display
- Tactile Experience: Textured grip zones provide secure handling, even when condensation forms
- The Pour: Patented wide-mouth spout design creates perfect laminar flow with 2cm head retention
- Reseal Innovation: Integrated CO₂-preserving valve allows partial consumption and resealing
- End-of-Life: Flattens to 5% of rigid container volume for disposal
Critical Design Elements
- Multi-Directional Stand-Up Base for stability on uneven surfaces
- Integrated Handle Option for larger 1-2L formats
- Tear-Notch + Pull-Tab Combo ensures clean opening without tools
- Oxygen-Scavenging Layer (Optional) for active packaging that absorbs residual O₂
Technical Performance Comparison
| Parameter |
PET/AL/PE |
PET/AL/PA/PE |
Glass Bottle |
| O₂ Transmission |
<0.001 cc/day |
<0.001 cc/day |
0.001-0.005 cc/day |
| Light Protection |
100% |
100% |
Amber: 90-95% |
| Weight (500ml) |
8g |
9g |
400g+ |
| Breakage Risk |
0% |
0% |
0.5-2% |
| Chilling Time |
18 minutes |
20 minutes |
35 minutes |
| Space Efficiency |
95% better |
94% better |
Baseline |
Sustainability Impact
Carbon Footprint Reduction
- Transportation: 85% less fuel consumption per liter shipped
- Production Energy: 70% less than glass manufacturing
- Water Usage: 95% reduction vs glass bottle cleaning/sterilization
Circular Economy Features
- Monolayer PE Version in Development: Fully recyclable single-material alternative
- Ocean-Bound Plastic Option: Incorporates 30% certified marine plastic
- Industrial Composting Trial: 180-day breakdown in controlled facilities
Brewery Economic Benefits
| Cost Factor |
Pouch vs Glass |
Pouch vs Can |
| Packaging Cost/Liter |
40% lower |
25% lower |
| Shipping Cost |
85% lower |
Comparable |
| Line Speed |
150% faster |
80% faster |
| Storage Space |
90% less |
85% less |
| Breakage/Loss |
Near zero |
Comparable |
Consumer Safety & Regulatory Compliance
- FDA/EU Compliant: All materials certified for direct food contact
- BPA-Free Guarantee: No epoxy linings required (unlike some cans)
- Allergen Safety: No latex or gluten-containing adhesives
- Migration Testing: Passes 10-day accelerated migration tests at 40°C
The Portable Draft System Revolution
This beer pouch represents the third wave of beer packaging evolution, solving the craft beer dilemma of delivering brewery-fresh character without logistical constraints. Whether choosing the absolute barrier of PET/AL/PE for classic styles or the reinforced protection of PET/AL/PA/PE for delicate hop profiles, this packaging platform offers brewers a new canvas for expression and consumers an unprecedented fresh beer experience—anywhere, anytime.
The craft beer pouch isn't merely a container; it's a mobile flavor preservation chamber that respects both the brewer's artistry and the drinker's desire for uncompromised quality beyond the taproom walls.
